Output the DAW Click to Headphones Only

Please use:

• microAUDIO v1.01 or later

• microAUDIO EDITOR v1.1.0 or later

Setup

1. Connect microAUDIO to your computer.

2. Launch microAUDIO EDITOR.

3. Open the SETTINGS tab and configure the following:

   • Set LOOPBACK to OFF

   • Set HEADPHONE OUT to BOTH

4. Launch your DAW.

5. Set the click (metronome) output in your DAW to microAUDIO channels 3–4.



Logic Pro

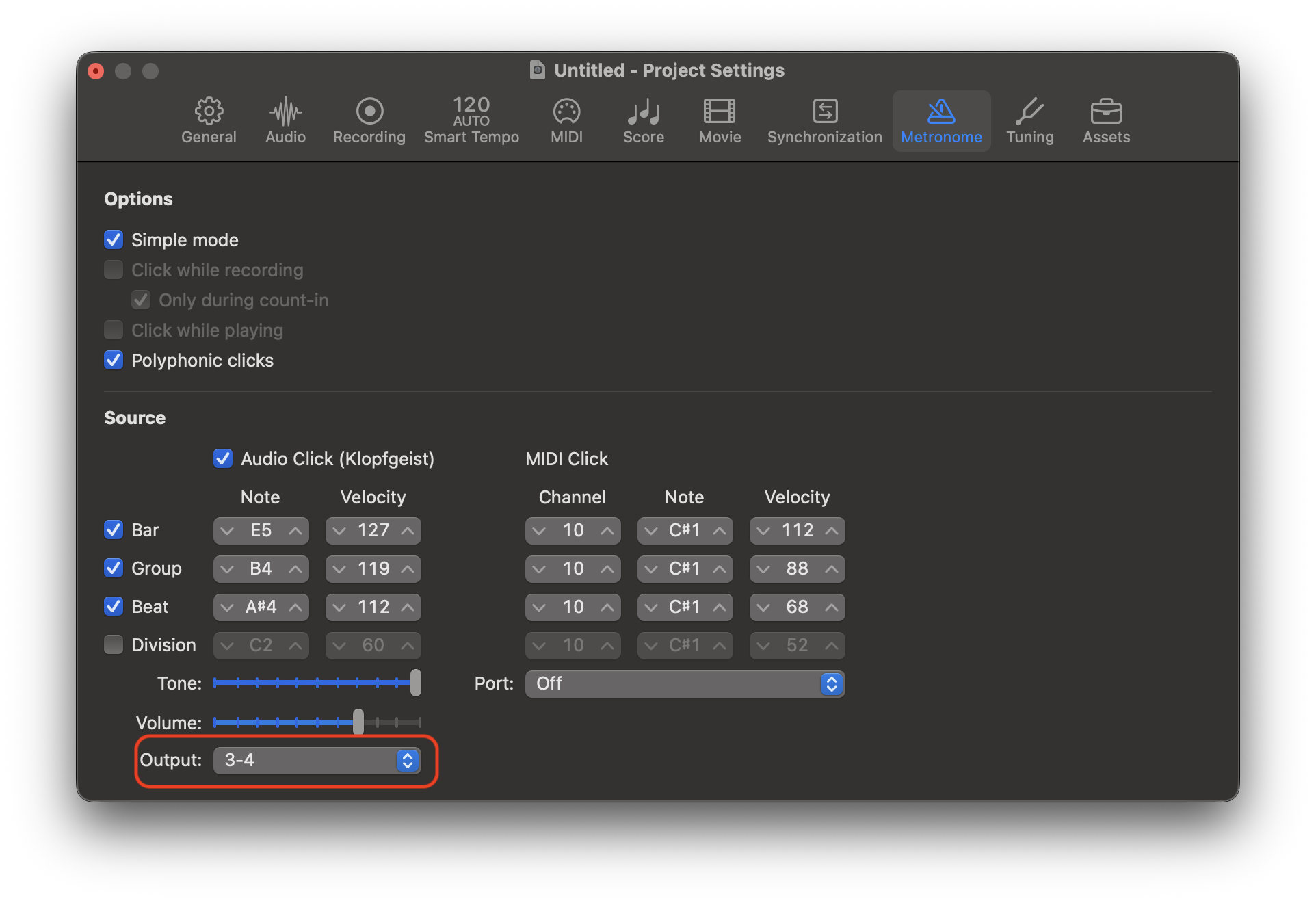

1. Open File > Project Settings > Metronome

2. Set Output to 3–4

Ableton Live

1. Open Live > Settings > Audio

2. Enable Output Config: 3/4

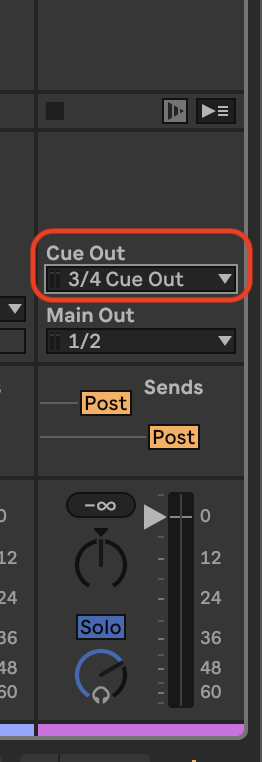

3. Open the Master Track I/O section and set Cue Out to 3/4

If you are using a different DAW, please refer to the user manual of the respective product.
