Install Keystage Control Surface Script for GarageBand/Logic on your Mac and simply connect Keystage to automatically complete optimal MIDI assignments.
▪️Operating requirements
・GarageBand version 10.4.4 or later.
・Logic Pro X version 10.6 or later.
◾️How to use
・ Install Keystage Control Surface Script for GarageBand/Logic.
・Connect Keystage after starting GarageBand / Logic Pro, Keystage is automatically recognized.
*When connecting Keystage to GarageBand, Logic Pro X, "Do you want to automatically assign the controls of the Keystage?" message will appear, please click on "Auto Assign", or
Open the Logic Pro X menu - Logic Pro - Control Surfaces - Settings - Controller Surfaces - MIDI Controllers and check the Keystage.
The following functions are assigned to Keystage controllers.
▪️GarageBand
| Keystage | Garage Band |
| PLAY (>) | Play |
| STOP (◻︎) | Stop |
| REC (○) | Record |
| LOOP | Cycle Mode |
| METRO (SHIFT + TEMPO) | Metronome ON/OFF |
| UNDO | Undo |
| SELECT LOWER TRACK (SHIFT + VALUE v) |
Next Track |
| SELECT UPPER TRACK (SHIFT + VALUE ^) |
Previous Track |
| PLAY POSITION BACK (SHIFT + encoder Left) |
Rewind |
| PLAY POSITION FORWARD (SHIFT + encoder Right) | Forward |
▪️Logic Pro X
| Keystage | Garage Band |
| PLAY (>) | Play |
| STOP (◻︎) | Stop |
| REC (○) | Record |
| LOOP | Cycle Mode |
| METRO (SHIFT + TEMPO) | Metronome ON/OFF |
| UNDO | Undo |
| SELECT LOWER TRACK (SHIFT + VALUE v) |
Next Track |
| SELECT UPPER TRACK (SHIFT + VALUE ^) |
Previous Track |
| PLAY POSITION BACK (SHIFT + encoder Left) |
Rewind |
| PLAY POSITION FORWARD (SHIFT + encoder Right) | Forward |

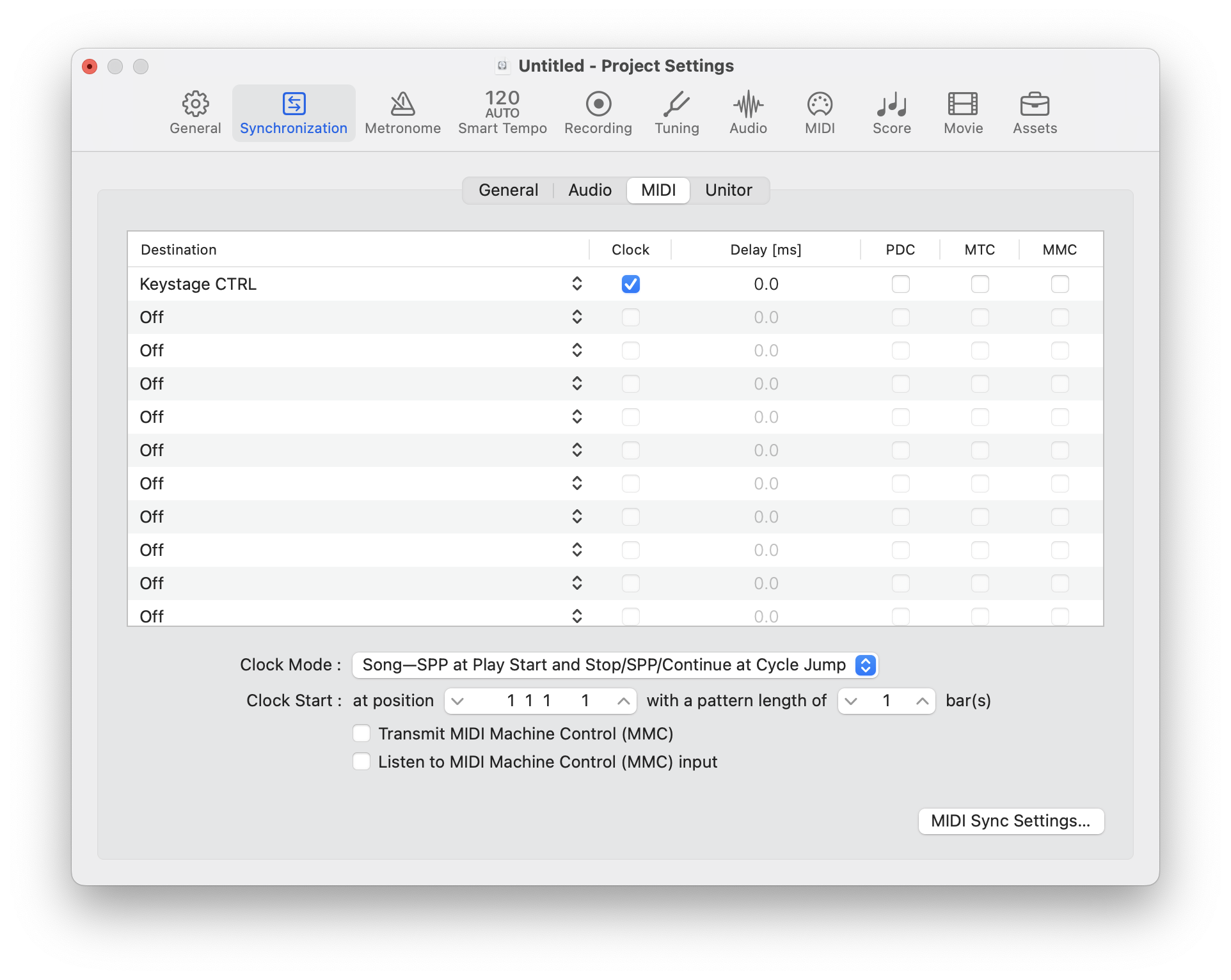

・If you want to synchronize Keystage's arpeggiator to Logic's tempo,
Logic Menu - File - Project Settings - Synchronization - MIDI
Select Distination: Keystage CTRL, and check the Clock.
