- Connect the Keystage to Computer and press SETTINGS button to enter Settings mode. Turn the volume knob 2 to change the Controller Mode to "Pro Tools". Press SETTINGS button again to return to normal mode.
- Start Pro Tools.
- Click on "Setup -> Peripherals" in the menu and select the "MIDI Controller" tab.

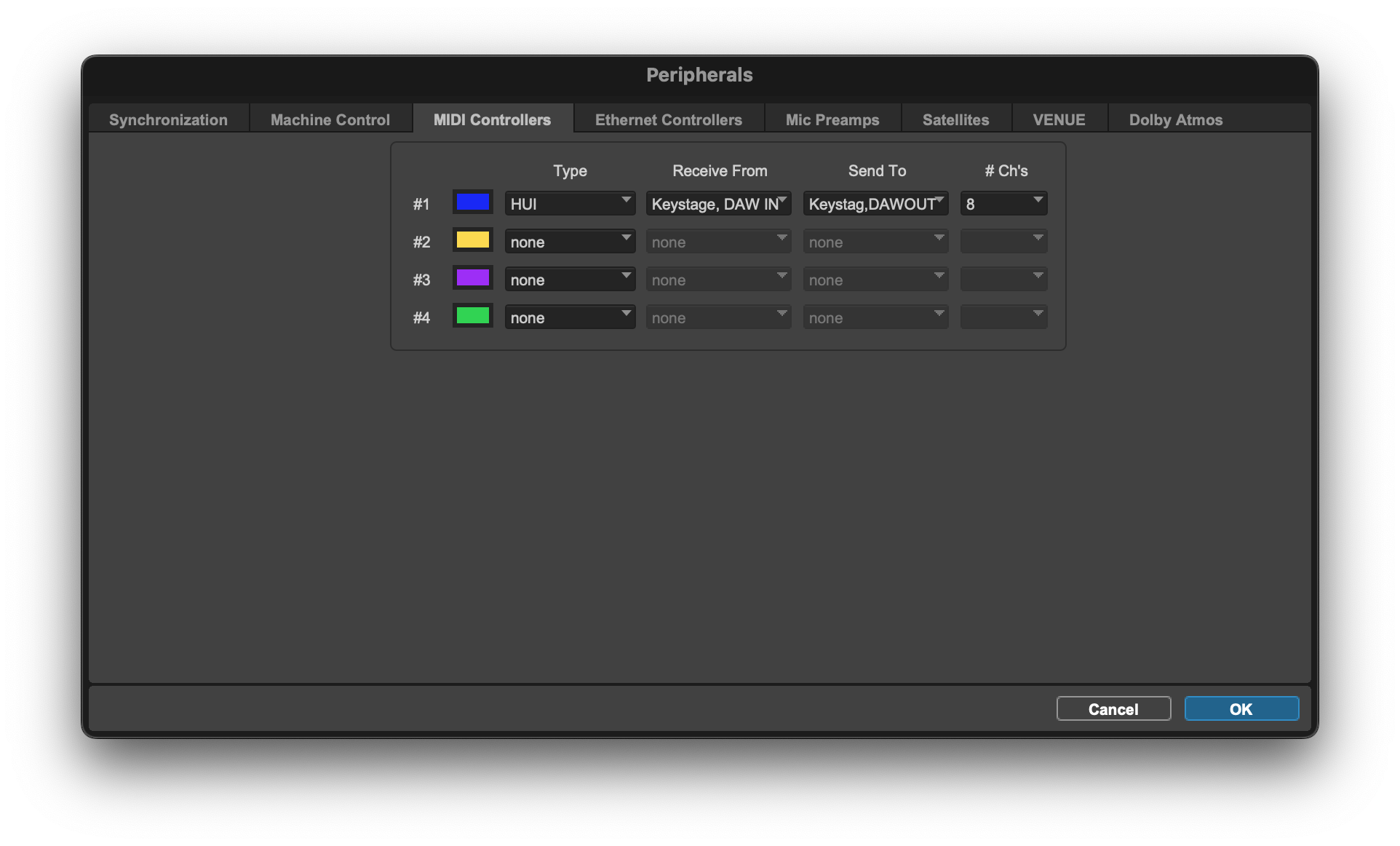

- Set the available slots from #1 to #4 as shown below and click OK.
- Type: HUI
- Receive From: "Keystage x DAW IN" (Windows, where x is a number) or "Keystage DAW IN" (mac)
- Send To: "Keystage x DAW OUT" (Windows, where x is a number) or "Keystage DAW OUT" (mac)
- If you want to synchronize the Keystage arpeggiator to the Pro Tools tempo, click on the menu "Setup -> MIDI -> MIDI Beat Clock" and check "Keystage x CTRL" (Windows, where x is a number) or "Keystage CTRL" (mac).
・The following functions are assigned to Keystage controllers.
| Keystage | Pro Tools |
| PLAY (>) | Play |
| STOP (◻︎) | Stop |
| REC (○) | Record |
| LOOP | Loop |
| METRO (SHIFT + TEMPO) | ---(Not supported) |
| UNDO (SHIFT + EXIT) | Undo |
| TRACK v (SHIFT + VALUE v) |
---(Not supported) |
| TRACK ^ (SHIFT + VALUE ^) |
---(Not supported) |
| PLAY POSITION BACK (SHIFT + Encoder Left) |
Rewind |
| PLAY POSITION FORWARD (SHIFT + Encoder Right) | Forward |
