nanoKONTROL2 Control Surface Script for GarageBand/Logic is a script for operating nanoKONTROL2 with Apple GarageBand/Logic.
▪️System requirements
・GarageBand Ver. 10.4.4 or later
・Logic Pro X Ver. 10.6 or later
▪️GarageBand
| nanoKONTROL2 | Garage Band |
| REW (<<) ※ | Rewind |
| FF (>>) | Forward |
| STOP (◻︎) ※ | Stop |
| PLAY (>) | Play or Stop |
| REC (○) | Record |
| CYCLE | Cycle Mode |
| TRACK < | Previous Fader Bank |
| TRACK > | next Fader Bank |
| MARKER SET | (No Assign) |
| MARKER < | |
| MARKER > |
※By pusshing the REW button while also pushing the STOP button, the playback position will be moved to the beginning of the song.
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
| Knob | Pan 1 | Pan 2 | Pan 3 | Pan 4 | Pan 5 | Pan 6 | Pan 7 | Pan 8 |
| Slider | Volume 1 | Volume 2 | Volume 3 | Volume 4 | Volume 5 | Volume 6 | Volume 7 | Volume 8 |
| Solo | Solo 1 | Solo 2 | Solo 3 | Solo 4 | Solo 5 | Solo 6 | Solo 7 | Solo 8 |
| Mute | Mute 1 | Mute 2 | Mute 3 | Mute 4 | Mute 5 | Mute 6 | Mute 7 | Mute 8 |
| Rec |
Record Enable 1 |
Record Enable 2 |
Record Enable 3 |
Record Enable 4 |
Record Enable 5 |
Record Enable 6 |
Record Enable 7 |
Record Enable 8 |
▪️Controlling tracks in GarageBand
You can control up to 8 tracks from the selected Fader bank.
The 8 tracks being controlled will be indicated by a white line as illustrated in figure 1.
Controllable tracks can be changed every 8 tracks by pushing the Track < button or Track > button on the nanoKONTROL2. For example, when Tracks 1-8 are selected, the controllable tracks will change to Tracks 9-16 by pushing the Track > button.
fig.1 GarageBand main window
▪️Logic Pro X
| nanoKONTROL2 | Logic Pro X |
| REW (<<) | Rewind |
| FF (>>) | Forward |
| STOP (◻︎) | Stop |
| PLAY (>) | Play or Stop |
| REC (○) | Record |
| CYCLE | Cycle Mode |
| TRACK < | Previous Fader Bank |
| TRACK > | Next Fader Bank |
| MARKER SET | Create Marker |
| MARKER < | Previous Fader Bank |
| MARKER > | Next Fader Bank |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |
| Knob | Pan 1 | Pan 2 | Pan 3 | Pan 4 | Pan 5 | Pan 6 | Pan 7 | Pan 8 |
| Slider | Volume 1 | Volume 2 | Volume 3 | Volume 4 | Volume 5 | Volume 6 | Volume 7 | Volume 8 |
| Solo | Solo 1 | Solo 2 | Solo 3 | Solo 4 | Solo 5 | Solo 6 | Solo 7 | Solo 8 |
| Mute | Mute 1 | Mute 2 | Mute 3 | Mute 4 | Mute 5 | Mute 6 | Mute 7 | Mute 8 |
| Rec |
Record Enable 1 |
Record Enable 2 |
Record Enable 3 |
Record Enable 4 |
Record Enable 5 |
Record Enable 6 |
Record Enable 7 |
Record Enable 8 |
▪️Controlling tracks in Logic
You can control up to 8 tracks from the selected Fader bank.

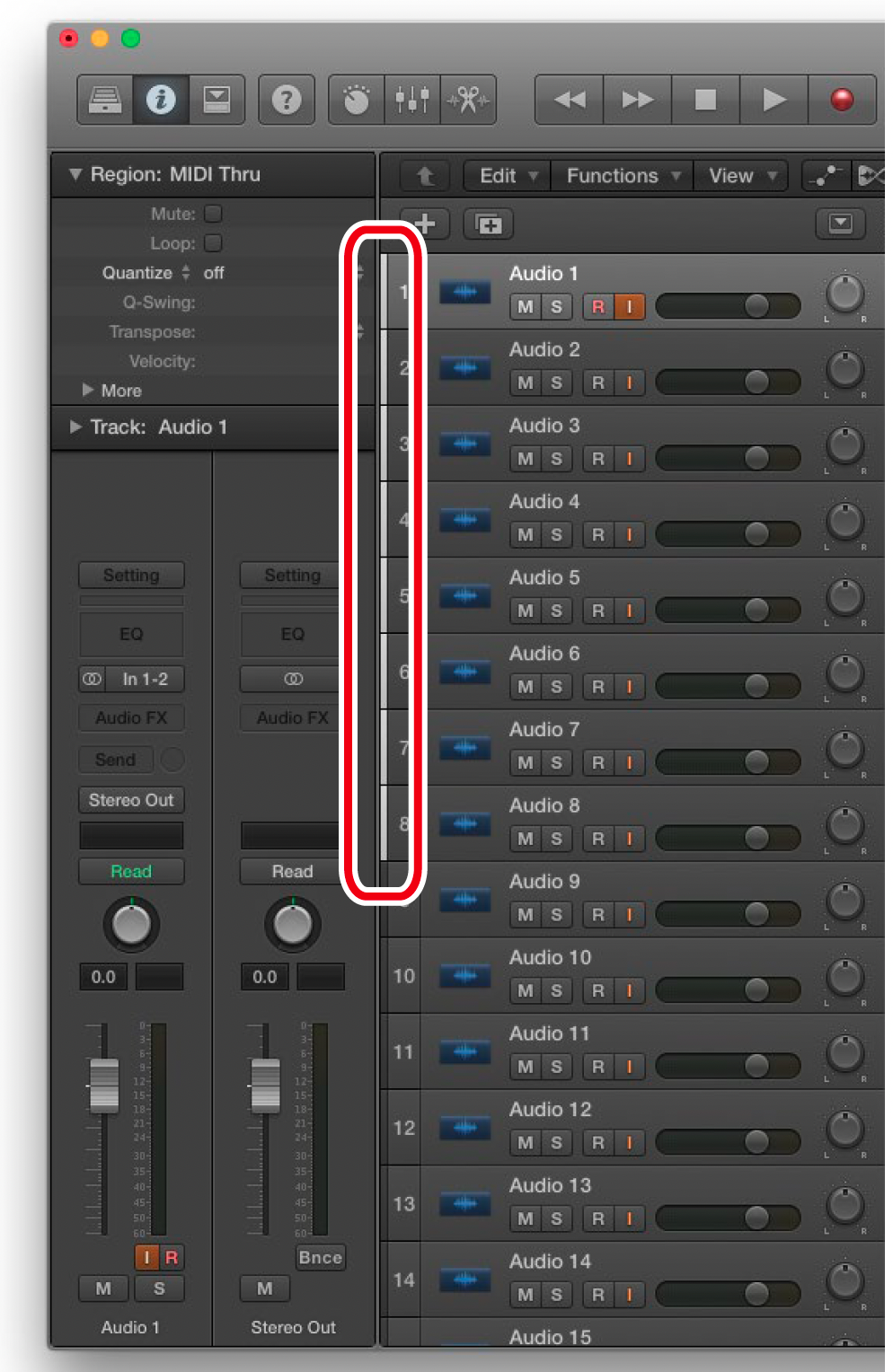

The 8 tracks being controlled will be indicated by a line as illustrated in figure 2.
Controllable tracks can be changed every 8 tracks by pushing the Track < button or Track > button on the nanoKONTROL2. For example, when Tracks 1-8 are selected, the controllable tracks will change to Tracks 9-16 by pushing the Track > button.
fig.2 Logic Pro main window
