Edit view

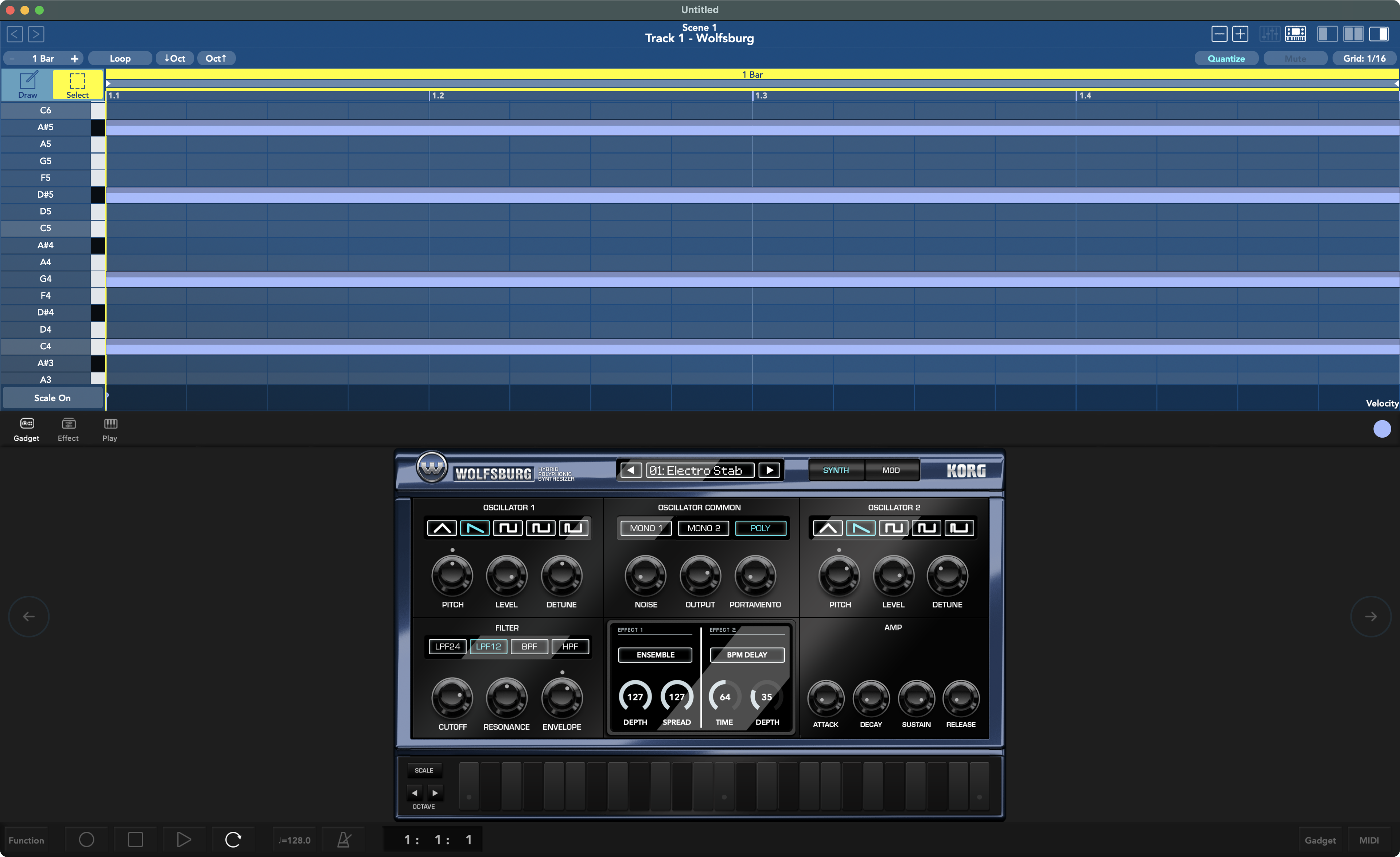

Gadget editor consists of the piano roll, audio editor, and gadget editor panels.
You may edit the gadget’s performance or tone, edit the tone of the song and recorded data, and edit audio data.

* Functions marked with are supported only by KORG Gadget 3.

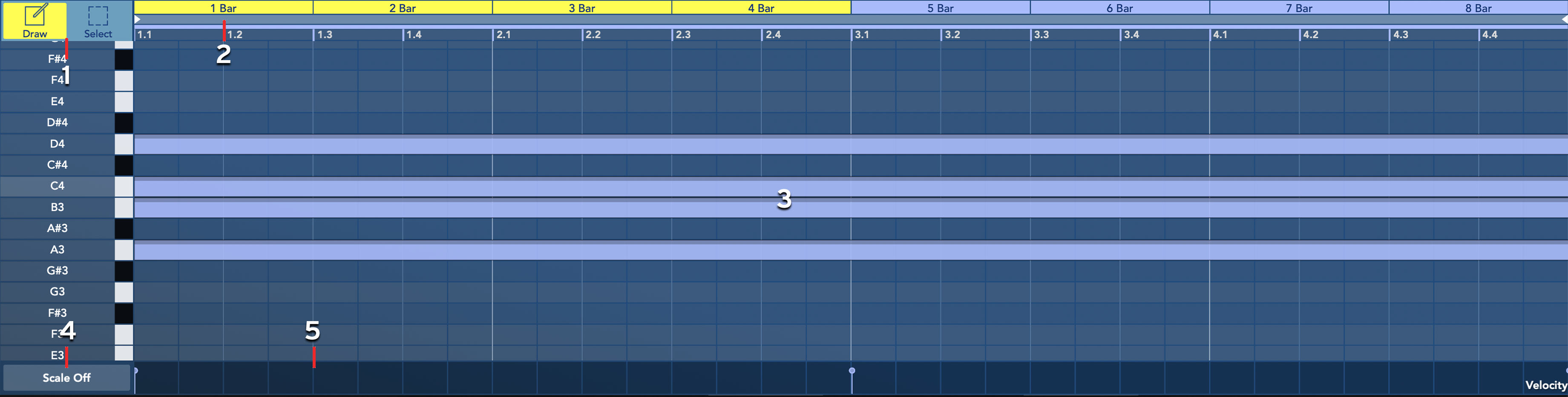

Piano roll / audio editor
Displays the notes recorded on the clips of each track or the waveform of the recorded audio. Clicking in the grid view will allow you to manually enter note data. You can also record in real time by arming the track. This view also allows you to edit after the data has been recorded.


Set the number of bars in the clip.

Set the playback method of the clip.

Set the quantization when recording in real time.

Mutes the track.

Set the quantizing resolution. You can also change the grid on the screen to fit the settings.

1. Draw/Select button
Change the function of the mouse. Draw mode allows you to draw notes on the grid with your mouse, while select mode allows you to select notes that are already in place.

2. Locator
Shows the current location in the clip. If there are multiple bars in a clip, you can tap on an off-screen (non-highlighted) bar to see its contents.
Also, by using the marker displayed below the bar display, you can loop any part of the clip

3. Note / waveform view
Displays notes recorded on the clip and the audio waveform. The velocity value is shown by the brighter color’s height within the note.

4. Scale/Import button
Turn the synthesizer gadget’s scale on / off for the piano roll. For audio gadgets, it becomes an audio import button.

5. Parameter display
Displays parameter values from the gadget and IFX on the track. Clicking below the piano roll will bring up and expand the display area, where you can the parameter values over the course of the clip.

Edit Panel*
You can edit and set gadgets, effects, and scale/chord/arpeggiator. Switching between each page is done with the buttons in the upper left corner.

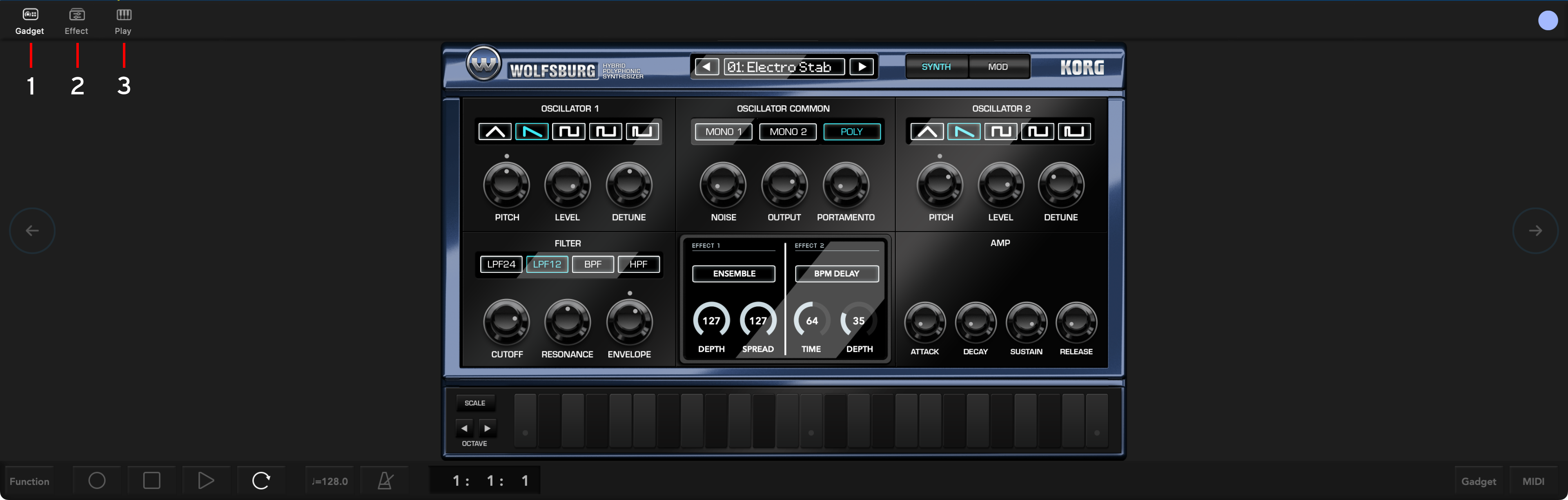

1. Gadget Page*
This page allows you to edit voice parameters of gadgets.

Parameters differ by gadget. For details, please refer to the gadget guide.

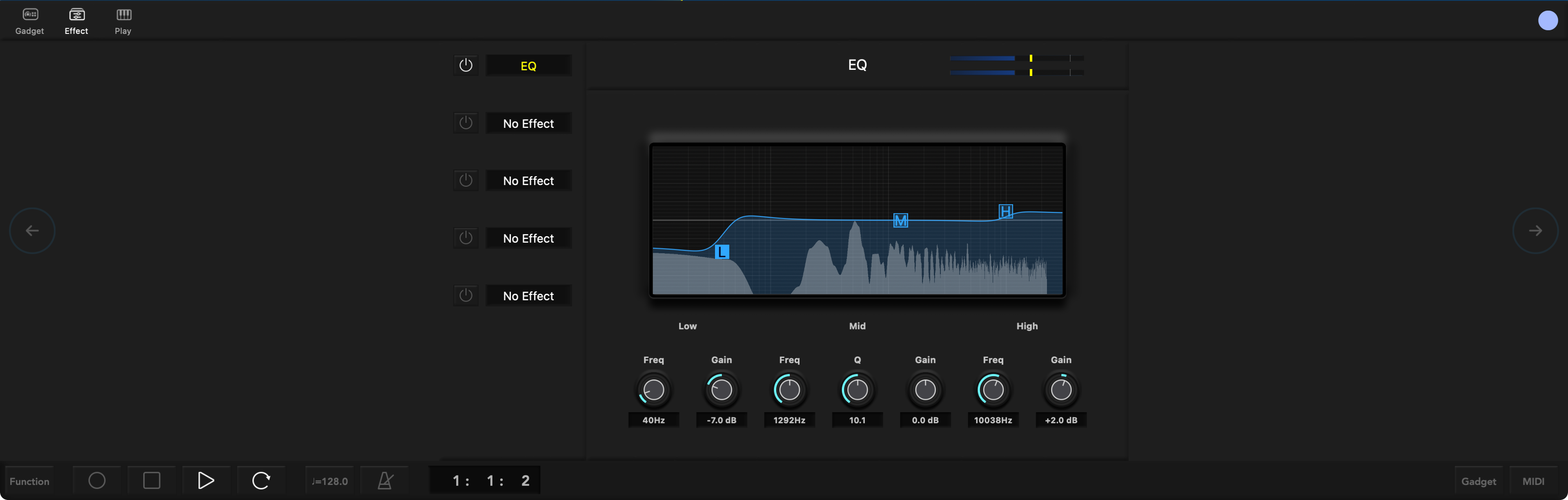

2. Effect Page*
This page is for setting the IFX to be used for each track.

IFX Slot
Up to 5 IFX can be inserted.
The order can be swapped by pressing the Function button.

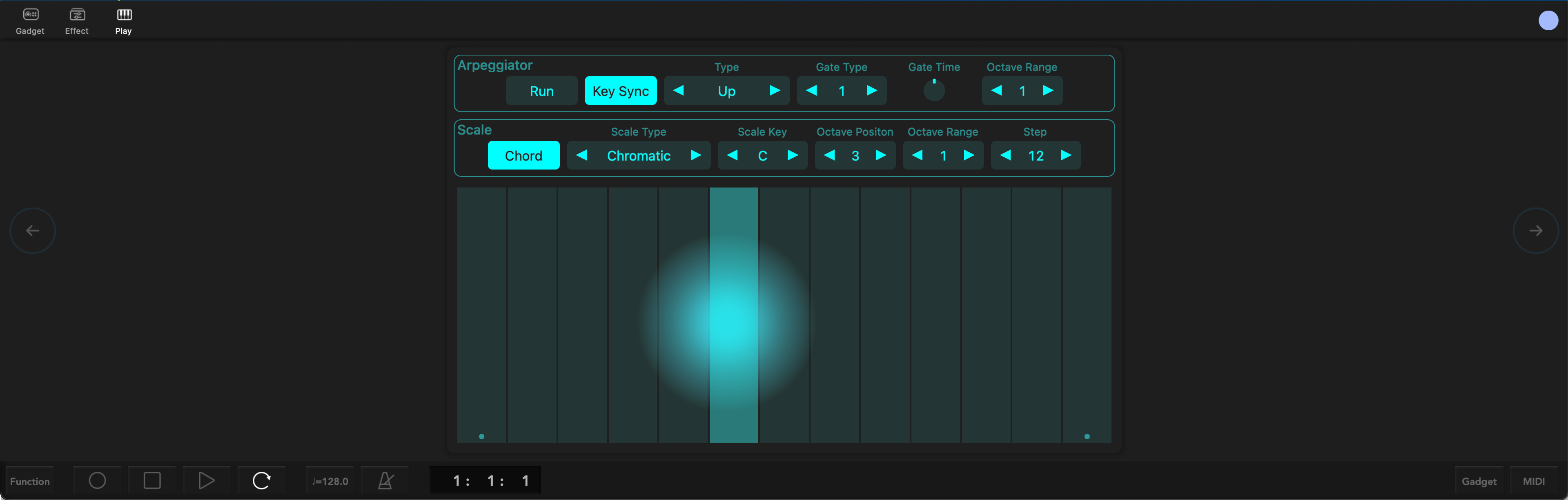

3. Play page*
This page is for setting and playing scales, chords, and arpeggiator in the Synth Gadget, and setting and playing patterns in the Drum Gadget.


Turn arpeggiator on / off.

Key Sync
Sets the action to be taken when the key is pressed.

Set the arpeggiator type.

Gate Type
Set the arpeggiator gate type.

Gate Time
Set the arpeggiator gate time.

Octave Range
Set the octave range for the arpeggiator.

3. Octave button
Set the octave to be played on the keyboard.


Turn chord trigger on / off.

Scale Type
Set the scale for the keyboard.

Scale Key
Set the root key for the scale.

Octave Position
Set the position of the octave to be displayed on the gadget.

Octave Range
Set the octave number to be displayed on the gadget.

Set the number of notes to be played within 1 octave.

Scale Keyboard
Play the arpeggiator, chords, etc. set on the Play page.

Tips You can assign MIDI CC# (MIDI Control Change Message) to knobs and sliders in each gadget. You may control the gadget with an external MIDI controller connected to your Mac.
