Drum gadgets

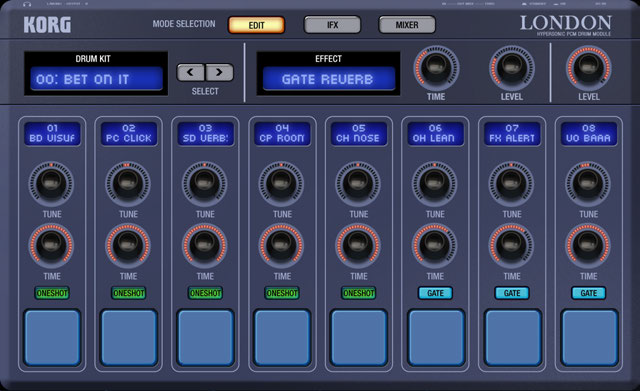

London
Hypersonic PCM Drum Module

This is a drum sound module gadget designed specifically for dance music. True to its simple, straightforward looks, it instantly gives you a performance-ready drum kit. There are more than 400 samples that will cover your needs for a variety of dance music formats including Electro, Minimal, Dubstep and so on. It also provides three effects that you can use on each part, as well as a master effect.



PART 1...8 EDIT
WAVEFORM
This selects the waveform that will be used by each part.

TUNE
This adjusts the pitch for each part.

TIME
This sets the decay time for each part when TRIGGER is set to ONESHOT.
This sets the release time for each part when TRIGGER is set to GATE.

TRIGGER
This selects the trigger type for each part.

PART 1...8 IFX
Punch
This sets an attack-emphasizing effect for the output signal of a part.

Low Boost
This sets the boost for the low range.

REV (Reverse)
This switches the reverse on/off for each part.

MFX (Master Effect Send)
This sets whether or not the sound for the part is sent to the master effect.

PART 1...8 MIXER
Pan
This sets the panning value for each part.

M (Mute)
This determines whether or not the part will sound.

Group
This groups parts. Parts that share the same settings are combined into one group and the last note is given priority, producing a monophonic sound. This is effective, for example, when playing with the closed and open sounds of the hi-hat grouped.

LEVEL
This sets the volume for each part.

EFFECT
TYPE
This sets the effect type.

EDIT 1
The parameter that’s controlled by this knob will depend on the effect type.

EDIT 2
The parameter that’s controlled by this knob will depend on the effect type.

Tips The parameters that can be specified with EDIT 1 and EDIT 2 will differ depending on the effect selected with TYPE.

Master
LEVEL
This sets the overall volume.

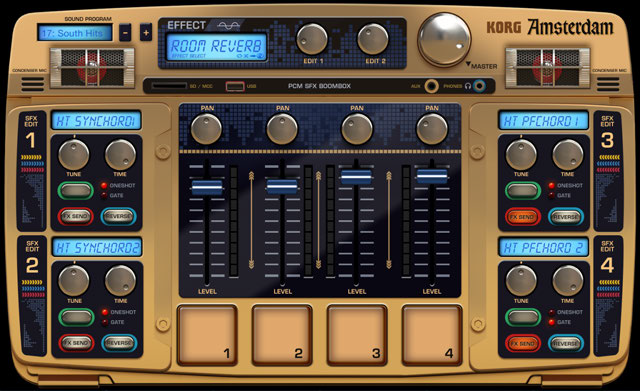

Amsterdam
PCM SFX Boombox

With the beefy looks of a gold body sporting chrome knobs, this is a four-part PCM sound module gadget containing more than one hundred sound effects that give impact to your song, including one-shot sounds, synth sounds, and scratches. It also contains numerous chord samples, allowing you to create chord progressions as if you were assembling a collage.



PART 1...4
LEVEL
This sets the volume for each part.

PAN
This sets the panning value for each part.

WAVE
This selects the waveform for each part.

TUNE
This sets pitch for each part.

TIME
This sets the decay time for each part.

EG MODE
This sets the decay time for each part.

FX SEND
This switches the send on/off for effect.

REVERSE
This switches the wave plays in reverse.

EFFECT
TYPE
This selects the effect type.

EDIT 1
The parameter that’s controlled by this knob will depend on the effect type.

EDIT 2
The parameter that’s controlled by this knob will depend on the effect type.

Tips The parameters that can be specified with EDIT 1 and EDIT 2 will differ depending on the effect selected with TYPE.

MASTER
MASTER
This sets the overall volume.

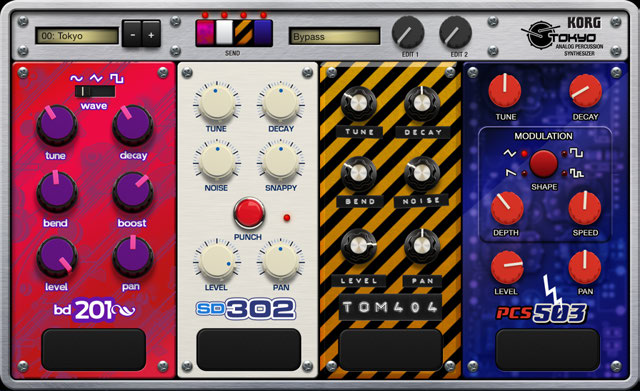

Tokyo
Analog Percussion Synthesizer

This is a drum gadget that collects four compact analog-type drum sound modules into a single package. Each module gives you parameters that are tuned respectively to kick, snare, tom and percussion sounds, allowing you to experience the distinctive enjoyment of creating sound with analog modules.



BD201
WAVE
This selects the waveform.

TUNE
This sets the pitch.

DECAY
This sets the length of the sound.

BEND
This sets the amount of bend.

BOOST
This sets the amount of low boost.

LEVEL
This sets the volume.

PAN
This sets the paning value.

SD302
TUNE
This sets the pitch.

DECAY
This sets the length of the sound.

NOISE
This sets the tonal character and modulation of the noise.

SNAPPY
This sets the amount of noise in the snare.

PUNCH
This emphasizes the attack.

LEVEL
This sets the volume.

PAN
This sets the paning value.

TOM404
TUNE
This sets the pitch.

DECAY
This sets the length of the sound.

BEND
This sets the amount of bend.

NOISE
This sets the amount of noise.


LEVEL
This sets the volume.

PAN
This sets the paning value.

PCS503
TUNE
This sets the pitch.

DECAY
This sets the length of the sound.

SHAPE
This selects the modulation type.

DEPTH
This sets the modulation depth.

SPEED
This sets the modulation speed.

LEVEL
This sets the volume.

PAN
This sets the paning value.

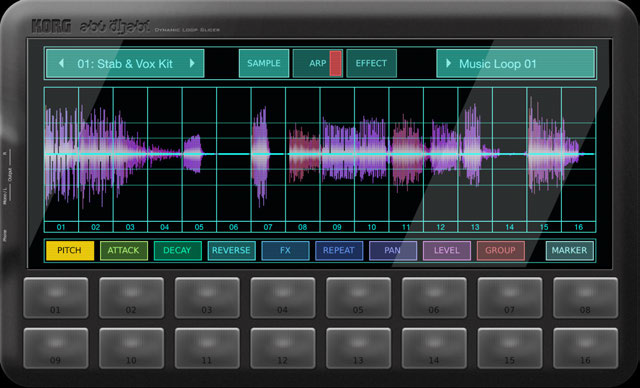

Abu Dhabi
Dynamic Loop Slicer

Instantly and automatically slice loop samples. This is a forward-looking, futuristic sampler gadget that lets you freely manipulate grooves. Carefully selected electro drum and chord sequences are provided, and you can instantly transform them into other-dimensional sounds with a single-stroke gesture. You can also freely import your own favorite samples for unlimited possibilities.



PART 01...16 SAMPLE

PITCH
This sets the pitch for each sample.

ATTACK
This sets the attack time for each sample.

DECAY
This sets the decay time for each sample.

REVERSE
This switches the wave plays in reverse for each sample.

FX
This switches the send on/off for effect for each sample.

REPEAT
This sets repeat speed for each sample. The sample will repeat while holding the pad.

PAN
This sets the panning value for each sample.

LEVEL
This sets the volume for each sample.

GROUP
This groups samples. Samples that share the same settings are combined into one group and the last note is given priority, producing a sound. This is effective, for example, when playing with the closed and open sounds of the hi-hat grouped.

MARKER
This sets the start point for each sample.

ARP

ARP
This switches the arpeggiator on/off.

MODE
This selects the arpeggiator type.

RATE
This sets the performance speed of the arpeggiator.

EFFECT

EFFECTS SELECTION
This selects the effect type.

WARP CONTROL
This controls the parameters of effect.

VOLUME
This sets the overall volume.

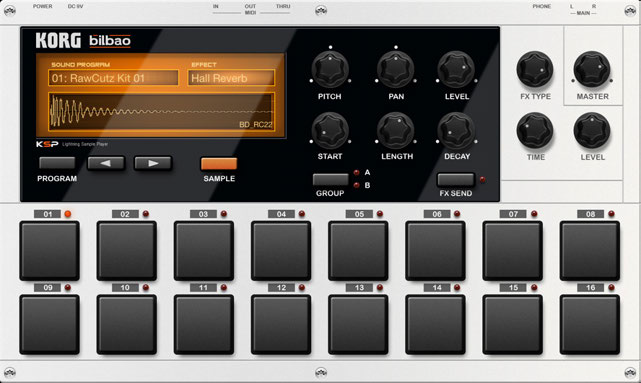

Bilbao
Lightning Sample Player

The beats you need right now are generated at lightning speed. This is a one-shot sampler gadget with 16-beat support. Numerous beats redolent with lo-fi feel are built in, expanding the range of the “London” drum sound module gadget. In addition, you can freely import your own samples to limitlessly expand your sound set.

PART 01...16 EDIT

PITCH
This sets the pitch for each sample.

PAN
This sets the panning value for each sample.

LEVEL
This sets the volume for each sample.

START
This sets the start time for each sample.

LENGTH
This sets the length of the each sample.

DECAY
This sets the decay time for each sample.

GROUP A/B
This groups samples. Samples that share the same settings are combined into one group and the last note is given priority, producing a sound. This is effective, for example, when playing with the closed and open sounds of the hi-hat grouped.

FX SEND
This switches the send on/off for effect for each sample.

EFFECT

FX TYPE
This selects the effect type.

EDIT 1
The parameter that’s controlled by this knob will depend on the effect type.

EDIT 2
The parameter that’s controlled by this knob will depend on the effect type.

Tips The parameters that can be specified with EDIT 1 and EDIT 2 will differ depending on the effect selected with TYPE.

MASTER
MASTER
This sets the overall volume.

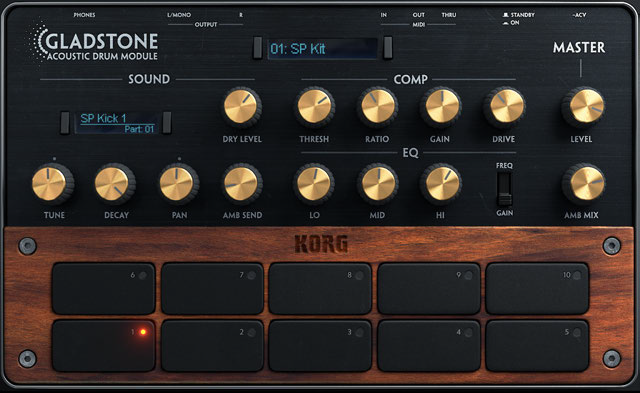

Gladstone Acoustic Drum Module

Gladstone is a powerful acoustic drum Gadget that will complement the sound of most styles of music regardless of genre. Equipped with 20 high quality drum kits, Gladstone enables you to compose a wide variety of drum parts. In addition to master effects, it creates an ambience and feel that suit the mood of the song, allowing you to quickly produce the drum sounds and patterns you’re looking for.



PART 1...10 SOUND
TUNE
This sets the pitch for each part.

DECAY
This sets the decay time for each part.

PAN
This sets the panning value for each part.

DRY LEVEL
This sets the dry level for each part.

AMB SEND
This sets the ambiance level for each part.

COMP
THRESH
This sets the threshold level.

RATIO
This sets the volume suppression ratio.

GAIN
This sets the amount of the output gain.

DRIVE
This sets the amount of the output drive.

EQ
LO
Adjusts the level of the low-frequency range of the sound.

MID
Adjusts the level of the mid-frequency range of the sound.

HI
Adjusts the level of the high-frequency range of the sound.

FREQ / GAIN
This switches between the equalizer frequency and gain.

MASTER
LEVEL
This sets the overall volume.

AMB MIX
This sets the overall ambiance level.

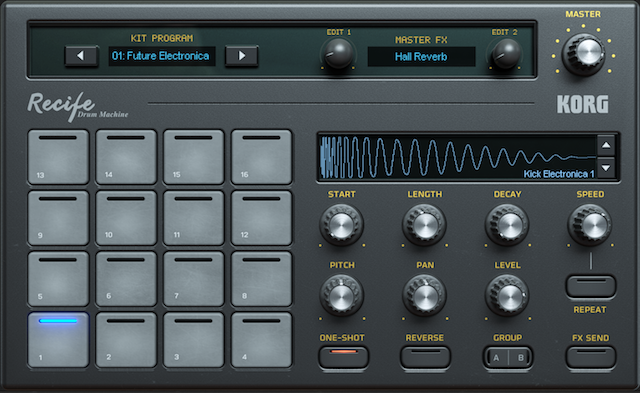

RecifeFuturistic Drum Module

This retro-futurist drum gadget provides 16 pads and incredible sounds to satisfy your beat-making needs. Create powerful sounds at will with our meticulously crafted vintage rhythm machine, which features acoustic drums, sound effects, and different beats. Provides 30 different kits that are battle-ready for a broad array of genres.



PART 01...16 EDIT
START
Set the start time for each part.

LENGTH
Set the sound length of each part.

DECAY
Set the decay time for each part.

SPEED
Set the repeat speed for each part.

PITCH
Adjust the pitch for each part.

PAN
Set the position of each part.

LEVEL
Set the volume for each part.

REPEAT
Play each part on repeat.

ONE-SHOT
Select EG mode of each part.

REVERSE
Set the reverse on / off for each part.

GROUP A/B
Set parts in groups. Parts with same settings will become one group, and will play starting from the last. For example, you can group opened and closed high hat and play.

FX SEND
Set the send on / off for effects for each part.

EFFECT
MASTER FX
Select effect type.

EDIT 1
Set the first parameter of the selected effect.

EDIT 2
Set the second parameter of the selected effect.

Tips EDIT 1 and EDIT 2 will have different parameters depending on the effect selected in “Type”.

MASTER
Set the overall volume.
